3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH

Product Categories
Kimpok Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

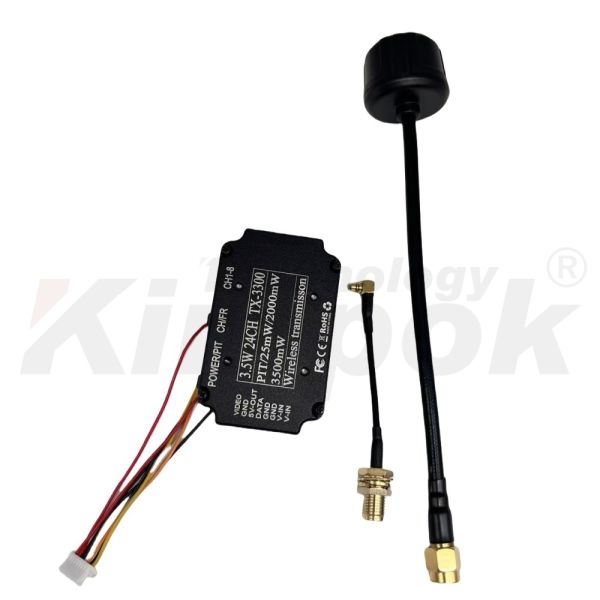

3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH

Brand Name : Kimpok

Model Number : KP-T3335

Certification : CE

Place of Origin : China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 3000pcs/month

Delivery Time : 7 Working Days

Packaging Details : International Standard Packing

Type : Wireless Video Transmitter

Frequency : 3.3G(3170M-3480M)

Protocol : IRC Tramp

Channel : 24CH

RF Power : 3.5W(25mW,2000mW,3500mW)

Power Supply : 7-36V DC ,1.8A

Contact Now

3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH

VTX Specification:

Item VTX
Power Supply DC7V-36V
Power 25mW,2000mW,3500mW
Control Protocol IRC
Dimension 53.5mm*32.5mm*15.5mm
Weight 24.5g

VRX Specification:

Modulate Wideband FM Modulate
Characteristics Value Units
Min. TYP. Max.
Input Voltage 3.5 5 6 V
Operating Temperature -10 50 65 °C
Receive Sensitivity -92 -95 -98 dBm
Frequency Stability -100 -- +100 ppm
Input Impedance -- 50 -- Ω
Input Standing Wave Ratio -- 2: 1 3: 1
Video Output Impedance -- 75 -- Ω
Signal-to-Noise Ratio -- 38 -- dB
Frequency Response 50Hz ~ 6MHz(±5dB)
Antenna Connector SMA(inner hole)
Weight 12.5 g
Dimensions(LxWxH) 70*26*13 mm

Frequency:

3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH3.3G 3.5W Drone Video Transmitter 3.3G VTX for FPV Racing Drone Long Distance Analog VTX 24CH
