5.8GHz Marine GPS Tracking Antenna 18dBi 4900-5850MHz IP66

Product Categories
Kimpok Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

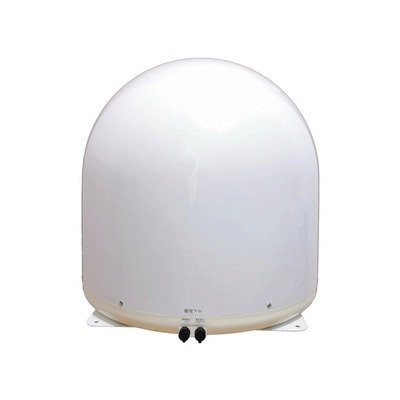

5.8GHz Marine GPS Tracking Antenna 18dBi 4900-5850MHz IP66

  • 1
  • 2
  • 3

Brand Name : Kimpok

Model Number : 5.8G Antenna 18dBi

Certification : CE Cerfication

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : L/C,Western Union,Paypal

Supply Ability : 5,000 pieces per month

Delivery Time : 3-7 work days

Packaging Details : International Standard Packing

Frequency Range : 4900MHz–5850MHz

High-Gain Antenna : 18dBi / 23dBi for superior signal reception

Rotation Capability : 360° continuous horizontal rotation

Automatic Tracking : 5Hz GPS real-time attitude calculation and adjustment

Data Rate : Supports up to 866Mbps high-speed transmission

Durability : IP66 waterproof and weatherproof for all-weather operation

Integrated Design : Combines electronic compass, GPS, and high-speed stepper motor

Easy Installation : Single network cable connection simplifies setup

Contact Now

5.8GHz Marine GPS Tracking Antenna 18dBi High-Gain 4900–5850MHz Real-Time Auto Tracking

Product Introduction
The KP-GPSAT001 5.8GHz Marine Wireless GPS Antenna is a cutting-edge real-time automatic tracking system designed for seamless satellite communication. Optimized for shipborne microwave systems, airborne, and vehicle-mounted platforms, this antenna ensures reliable communication and automatic target tracking using preset latitude, longitude, and altitude data. Compact and lightweight, it integrates GPS, electronic compass, and high-speed stepper motors for intelligent 360° tracking and stable connectivity in challenging environments.

Key Features

  • High-speed 5Hz GPS real-time automatic attitude calculation and adjustment

  • 360° continuous horizontal rotation for full-area coverage

  • Integrated high-gain antenna with superior link bandwidth

  • Miniaturized, lightweight design with high integration

  • Combines electronic compass, GPS, and high-speed stepper motor control

  • Full-angle 360° automatic high-speed AI intelligent system

  • IP66 weatherproof rating for all-weather operation

  • Simple installation using a single network cable

Advantages

  • Seamless Communication: Maintains stable satellite links for ships, aircraft, and vehicles in motion

  • Precision Tracking: Auto-adjusts pitch and heading for accurate positioning and target tracking

  • High Performance: Supports high data rates (up to 866Mbps) with multi-modulation formats (QPSK, 16-QAM, 64-QAM)

  • Robust and Durable: IP66-rated housing ensures long-term operation in marine and harsh outdoor environments

  • Easy Integration: Compact design and single-cable network connection simplify installation and maintenance

Applications

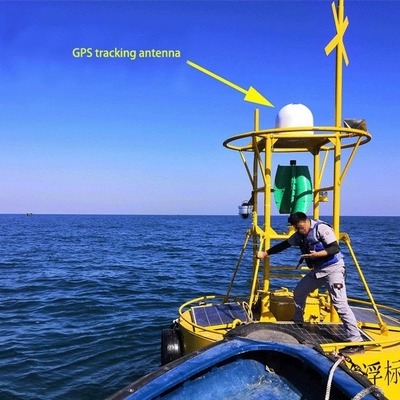

  • Shipborne, airborne, and vehicle-mounted high-speed networking and video wireless transmission

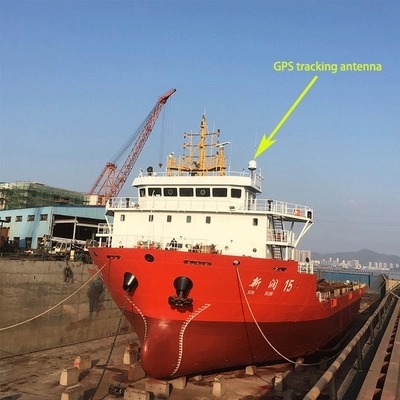

  • Maritime patrol ships, coast guard vessels, ferries, and law enforcement ships

  • Airborne and vehicle-mounted real-time video wireless transmission

  • Special operational vehicles in mines, oil fields, protected areas, and ports

  • Public security, traffic emergency, and emergency rescue command systems

  • Airborne aerial photography and surveillance

Technical Specifications

Category Specification
Operating Frequency 4900MHz ~ 5850MHz
Transmit Power 27dBm / 30dBm
Antenna Gain 18dBi / 23dBi
Channel Bandwidth 10 / 20 / 30 / 40 / 80 Hz
Bandwidth Rate 300Mbps / 866Mbps
Network Port 8-pin IP67 aviation connector
Modulation Type QPSK / 16-QAM / 64-QAM / TDMA support
Horizontal Rotation 360° continuous
Pitch Adjustment Auto
Rotation Speed 50°/s
Horizontal Accuracy 0.24°
GPS Frequency 1~5Hz adjustable
Protection Level IP66
