One Channel Portable COFDM Wireless Video Receiver RF HD AV Receiver with 17 inch Monitor
Wireless COFDM receiver Description:
KP-DRB01H high quality security surveillance HD wireless video receiver is a new design COFDM wireless video audio receiver from Kimpok Technology.
Portable high quality security surveillance HD wireless video receiver is designed with built-in PTZ controller, which is special for transmitting from end camera movement controlling. Build in 120G SSD memory and 17 inch highlight LCD screen, it’s allowed real time video image storage, video monitoring. It also support video playback.

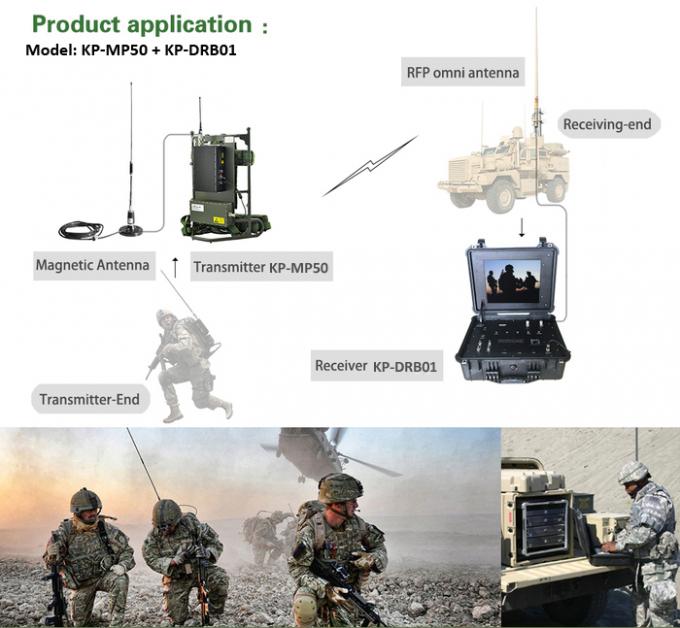

The convenient portable pelican case, PTZ controller, and large volume internal battery design make it wildly applied in outdoor tactical automatic project, like remote wireless video surveillance from robot/ship, EOD robot, UAV point to point application etc.
Feature:
- H.264 video compression;
- 17" Standard Samsung LCD screen;
- Built in 120G SSD memory;
- Support RS485 data signal and video signals transmission simultaneously;
- Advanced AES 128 user-defined password encryption for the security;
- NTSC/PAL adjustable video format;
- Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;
- Adjustable working frequency, bandwidth and etc;
- COFDM modulation, stable signal reception;
- 1080P/i & 720P/i video resolution.
- 20000mA internal battery
Specification:
| Frequency | 300-4400MHz (subdivided) |
| Memory | 120G |
| LCD monitor | 17inch |
| RF level Input | -105dBm |
| RF interface | N(F) |
| AV output | BNC, HD output |
| Modulation | COFDM |
| Power supply | AC220V / DC12V |
| Bandwidth | 2/2.5/4/8MHz(adjustable) |
| Constellation | QPSK, 16QAM |
| Data PTZ control | Standard RS485 |
| FEC | 1/2,2/3,3/4,5/6,7/8(optional) |
| Guard interval | 1/32,1/16,1/8,1/4 (optional) |
| Video format | PAL/NTSC |
| Video decoding | H.264 |
| Resolution | 1080P/i, 720P/i |
| Lines of horizontal | 625 or 525 Line |
| Audio output | Analog stereo left and right channels |
| Data encryption | AES128 user-defined password |
| Voltage | AC220V±20V, DC14V~DC16V |
| Work environment | -30~70° C |
| Built in battery | 20000mA |
| Size | 520*430*210mm |
| Weight | 18kg |
