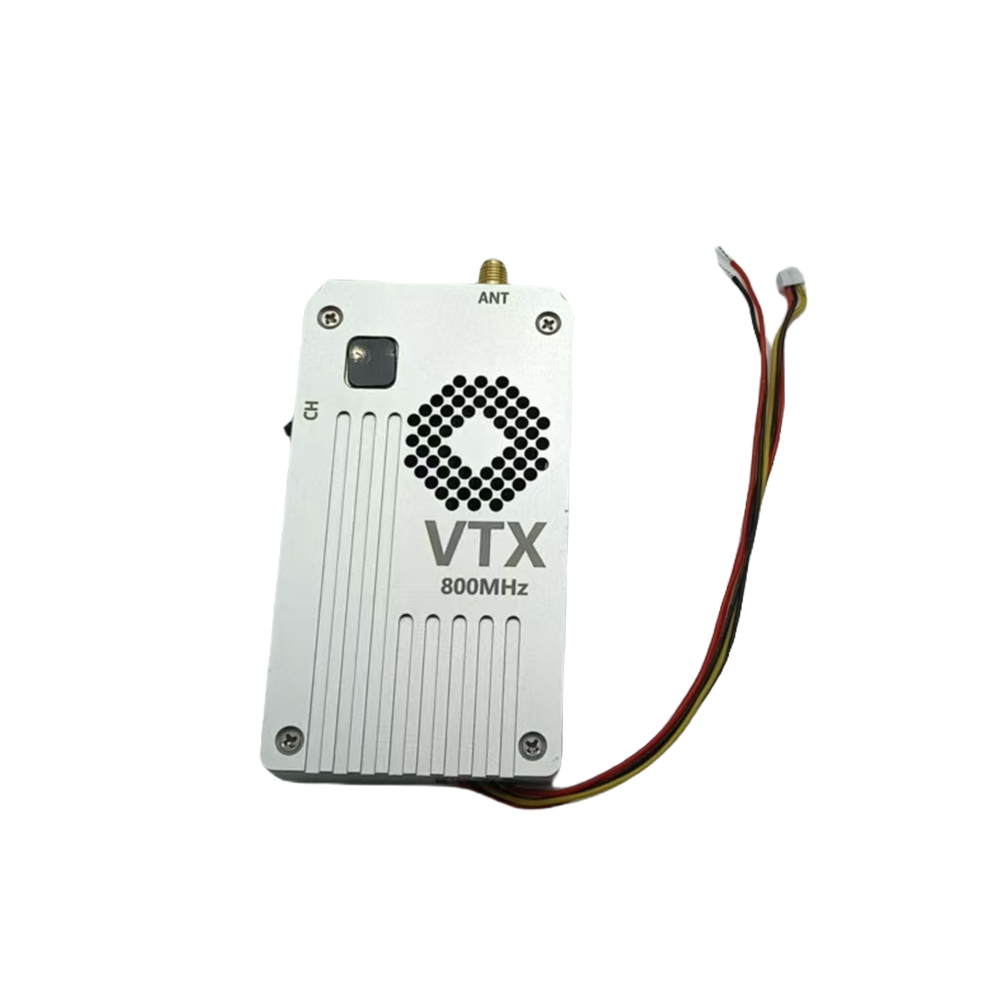

800Mhz 5W Wireless Image Transmission 800M Drone Video Transmitter Receiver FPV VTX

  • 1
  • 2
  • 3

Brand Name : Kimpok

Model Number : KP-800VTX5W

Certification : CE

Place of Origin : China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000 piece/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Type : Wireless video transmission

Frequency : 800Mhz

Transmit power : 5W

Voltage : DC 10V~36V

Modulation : FM

Led Indicator : Yes

Smart Audio : Yes

Antenna Connector : MMCX

Contact Now

800Mhz 5W Wireless Image Transmission 800M Drone Video Transmitter Receiver FPV VTX

Description:

This is a new wireless video transmission equipment, using frequency modulation mode and a new frequency, to avoid the use of more in the same range of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission standard frequency, more suitable for use in complex environments. The sensitivity of the receiver is -85dBm, and the transmission image is clear and stable. The ground high-gain antenna can transmit 5~10km in the open area of the city, and the high-gain antenna can transmit about 60km in the air-to-ground LOS (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).

Transmitter Parameter:

Product name Analog video transmitter
Voltage DC 10V~36V
Current 1.3A
Modulation FM
Frequency 800Mhz
Channels 8 channels
Frequency band

800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz
Transmit Power 5 watt
Video Output 1 Vp-p(FM)
Temperature -10℃ ~ +50℃
Antenna port SMA female
Transmitter Weight 104g
Dimensions 98*55*18mm (without antenna)
Receiver Parameter:
Product Analog video receiver
Voltage DC 10V~18V
Receiving sensitivity -85dB
Modulation FM
Frequency 800Mhz
Channels 8 channels
Frequency band

800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz
Video Output 1 Vp-p(FM)
Temperature -10℃ ~ +50℃
Antenna port SMA female
Transmitter Weight 83g
Dimensions (L * W * H) 75*45*20mm (antenna port not included)
