Brand Name : Kimpok
Model Number : KP-12VTX5W
Certification : CE
Place of Origin : China
MOQ : 1 piece
Price : Negotiation
Payment Terms : T/T,Western Union,paypal
Supply Ability : 5000 pieces/month
Delivery Time : Negotiation
Packaging Details : International Standard Packing
Type : Wireless Video Transmission
Frequency : 1.2Ghz(1080-1360M)
Current : 1.3A
Channel : 8 Channels
1.2G 5W Wireless Video Transmitter and Receiver 1.2Ghz VTX VRX 1080-1360M FPV Video Long Range Transmission
Transmitter Parameter:
Product name | Analog video transmitter |
Voltage | DC 10V~36V |
Current | 1.3A |
Modulation | FM |
Frequency | 1200Mhz |
Channels | 8 channels |
Frequency band | 1080Mhz, 1120Mhz, 1160Mhz, 1200Mhz, 1240Mhz, 1280Mhz, 1320Mhz, 1360Mhz |
Transmit Power | 5 watt |
Video Output | 1 Vp-p(FM) |
Temperature | -10℃ ~ +50℃ |
Antenna port | SMA female |
Transmitter Weight | 104g |
Dimensions | 98*55*18mm (without antenna) |
Receiver Parameter:
Frequency | 1.2Ghz |
Channel | 12 channels |
Frequency band | 1080Mhz, 1120Mhz, 1160Mhz, 1200Mhz, 1240Mhz, 1280Mhz, 1320Mh, 1360Mhz |
Power input | DC 12V |
Receiving sensitivity | -85dBm |
Weight | 114g |
Dimension | 116*80*21mm |
![]() |

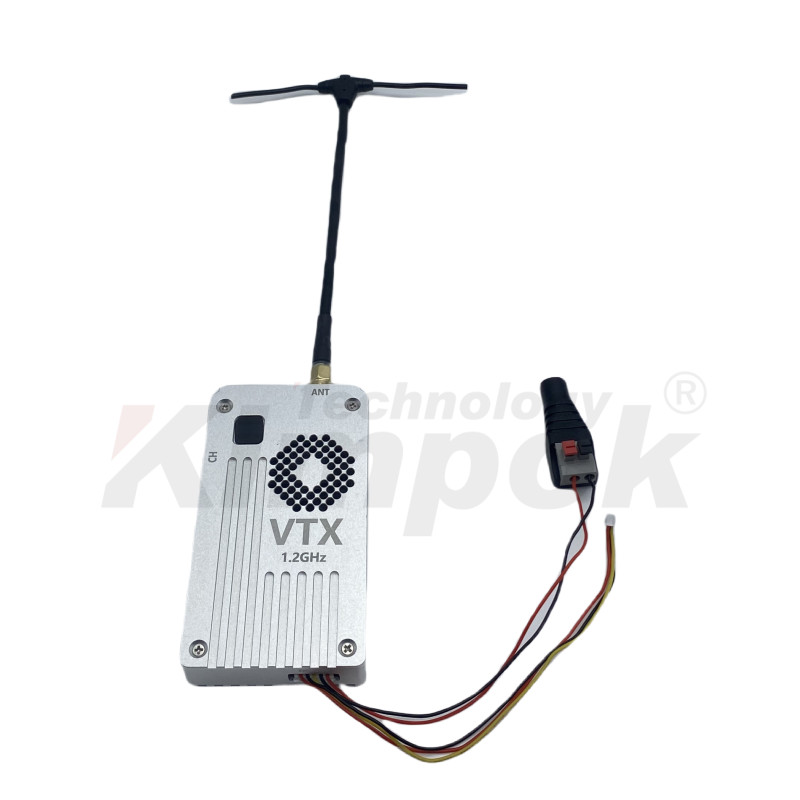

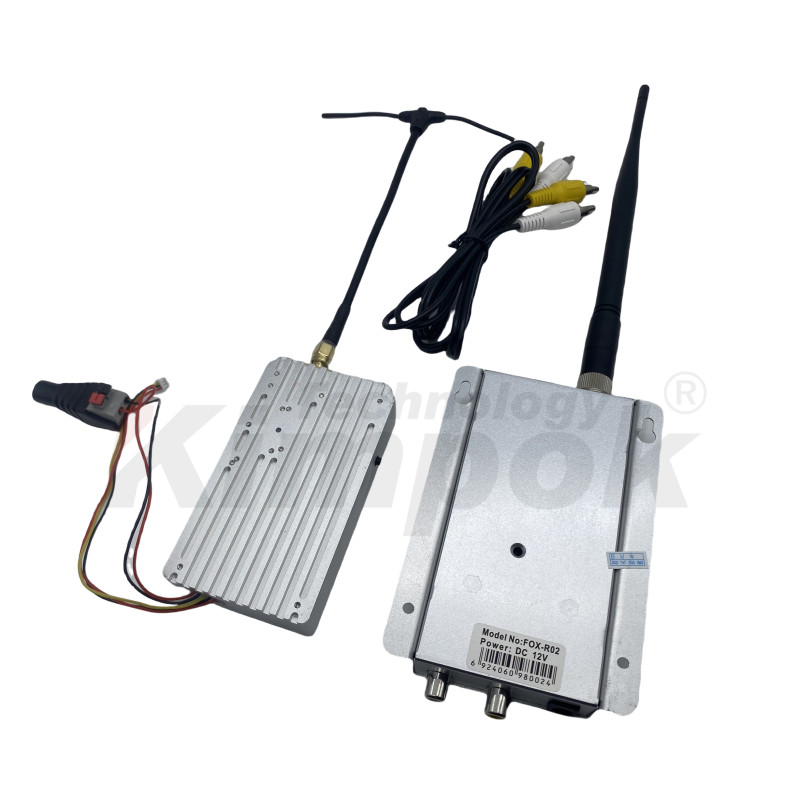

1.2G 5W Wireless Video Transmitter and Receiver 1.2Ghz VTX VRX 1080-1360M FPV Video Long Range Transmission Images |
